Fire Pit Art High Capacity AWEIS

Fire Pit Art High Capacity AWEIS – HC-AWEIS

$2,500.00
Skip to product information
Fire Pit Art High Capacity AWEIS
  • Fire Pit Art High Capacity AWEIS
  • Fire Pit Art High Capacity AWEIS – view 2
  • Fire Pit Art High Capacity AWEIS – view 3
  • Fire Pit Art High Capacity AWEIS – view 4
  • Fire Pit Art High Capacity AWEIS – view 5
  • Fire Pit Art High Capacity AWEIS
  • Fire Pit Art High Capacity AWEIS – view 2
  • Fire Pit Art High Capacity AWEIS – view 3
  • Fire Pit Art High Capacity AWEIS – view 4
  • Fire Pit Art High Capacity AWEIS – view 5
Specifications
Specifications
BrandFire Pit Art
ModelHC-AWEIS
Fire pit height4"
Overall height4"
Diameter / widthDependant on box available - shipped via USPS when not shipped with fire pit
Shipping box (L x W x H)7" x 10" x 5" - UPS Ground
Product weight15 lb
Shipping weight15 lb
UPC614405516221
Frequently asked questions
What does this kit include?
It includes a control box, pilot burner assembly, and transformer. The manufacturer documentation also lists a 24-volt AC transformer, ignition control module, heat deflector shield, and install instructions.
Will this fit my existing fire pit?
The unit has an overall height of 4 inches, and its diameter or width depends on the box available for shipping. It is designed to connect to a gas fire pit's existing gas line and electrical supply.
How is the AWEIS system installed?
Assembly is required, and the system should be installed with the included install instructions. The manufacturer recommends always consulting an electrician for installation, since the unit runs on 24-volt AC power and connects to a gas supply.
How does this product ship?
It ships via UPS Ground in a box measuring 7 x 10 x 5 inches, with a product and shipping weight of 15 lb. If shipped separately from a fire pit, it may go out via USPS depending on box availability.
What warranty comes with this ignition system?
Specific warranty terms are not included in the available product data; refer to the included install instructions or contact the manufacturer for coverage details.
Can this unit be serviced if a part fails?
Yes, it is described as field serviceable, meaning components such as the pilot burner assembly can be accessed and serviced by a qualified technician rather than replacing the entire unit.
Delivery
Made to order and shipped from the manufacturer; carrier and delivery date are confirmed after the order is placed.
Fire Pit Art High Capacity AWEIS – HC-AWEIS

Fire Pit Art

Fire Pit Art High Capacity AWEIS – HC-AWEIS

$2,500.00

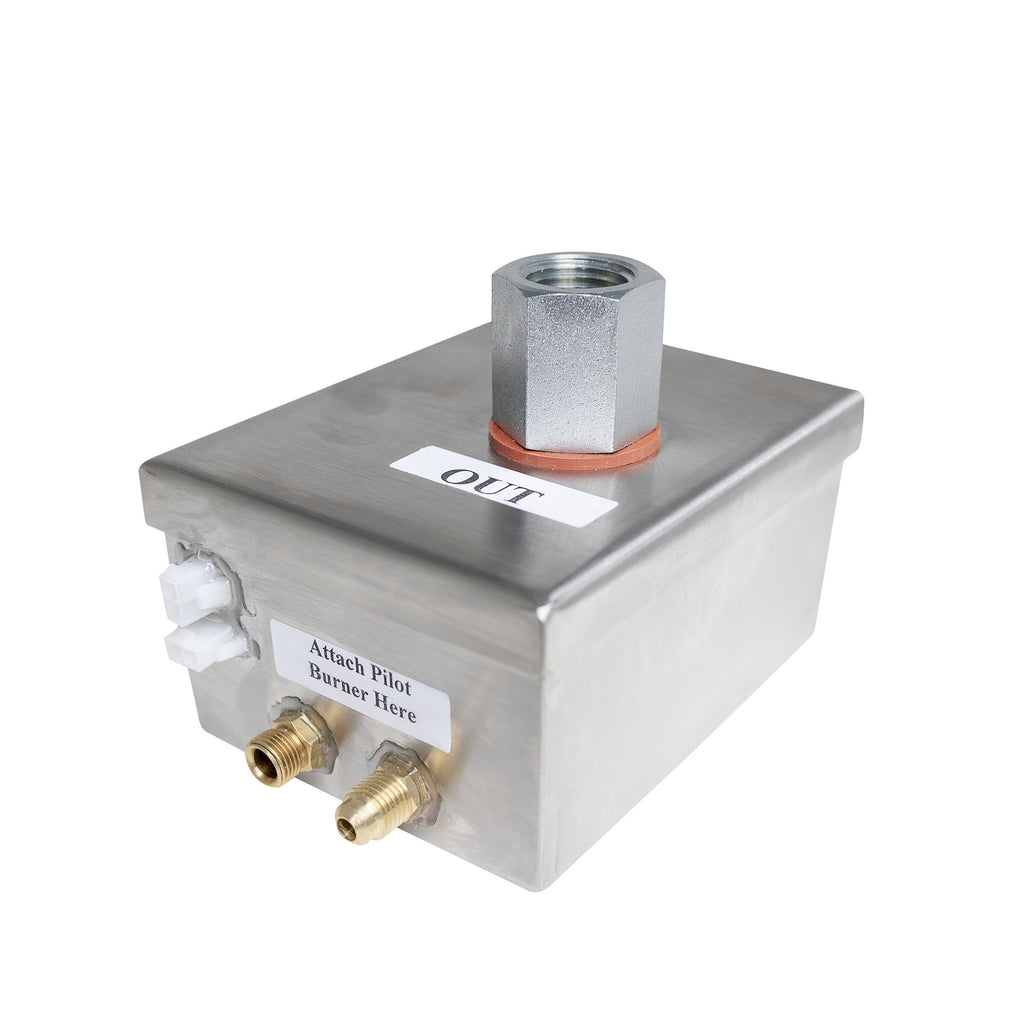

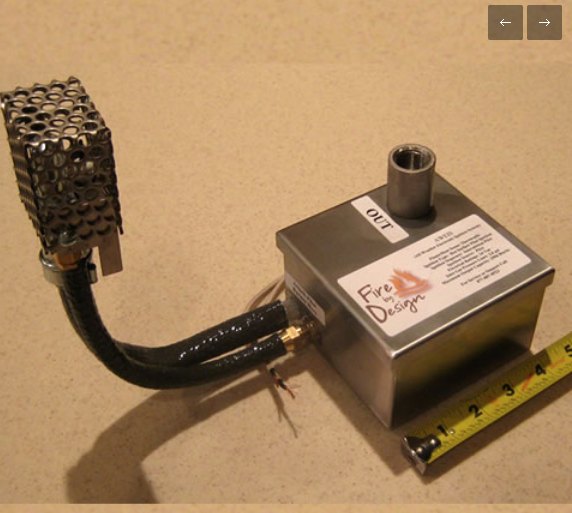

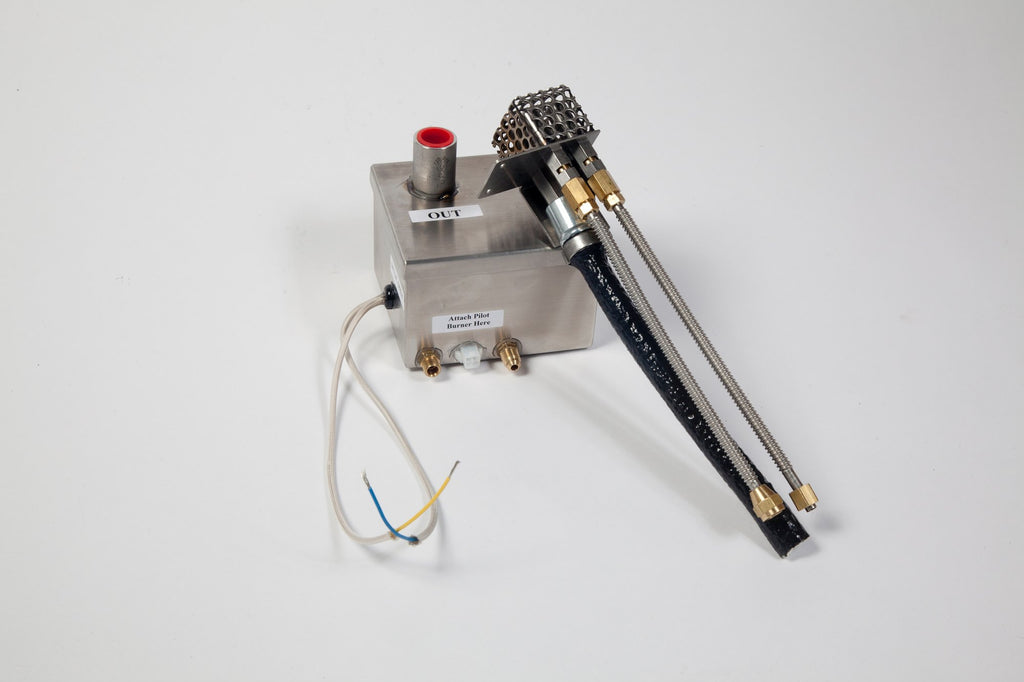

The Fire Pit Art High Capacity AWEIS is a field-serviceable electronic ignition system for gas fire pits, rated up to 125,000 BTU/hr and running on 24-volt AC power. It includes a control box, pilot burner assembly, and transformer, stands 4 inches tall overall, and ships via UPS Ground in a 7 x 10 x 5 inch box weighing 15 lb.

  • 125K BTU/hr max output
  • 24-volt AC electronic ignition (AWEIS)
  • Includes control box, pilot burner & transformer
  • Field-serviceable design
  • Overall height 4 inches
  • Ships via UPS Ground, 15 lb
HC-AWEIS
  • Made to order — ships in 2–5 business days
  • Authorized Fire Pit Art dealer — new, genuine product
  • Delivery in 3–4 business days after dispatch
  • Free shipping on orders $2,500+ · flat $100 shipping under $2,500 (US)
Description

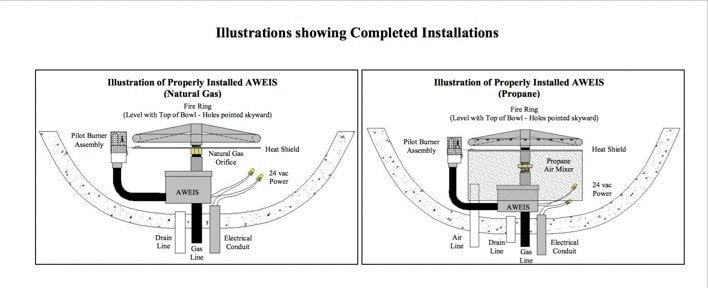

The Fire Pit Art High Capacity AWEIS is an electronic ignition system built for gas fire pits that need a reliable, field-serviceable way to light and hold a flame. It suits homeowners or installers replacing an aging pilot assembly or upgrading a fire pit to an All Weather Electronic Ignition System (AWEIS) setup. The unit is designed to work with natural gas or propane (LP) fuel configurations and fits into the control compartment of a fire pit, connecting to the gas line and electrical supply.

Because it is a control and ignition component rather than a full fire pit, it is best suited to projects where the burner pan, fire pit body, and gas lines are already in place and only the ignition hardware needs to be installed or replaced.

Features

  • Max output of 125K Btu/hr for commercial-grade performance

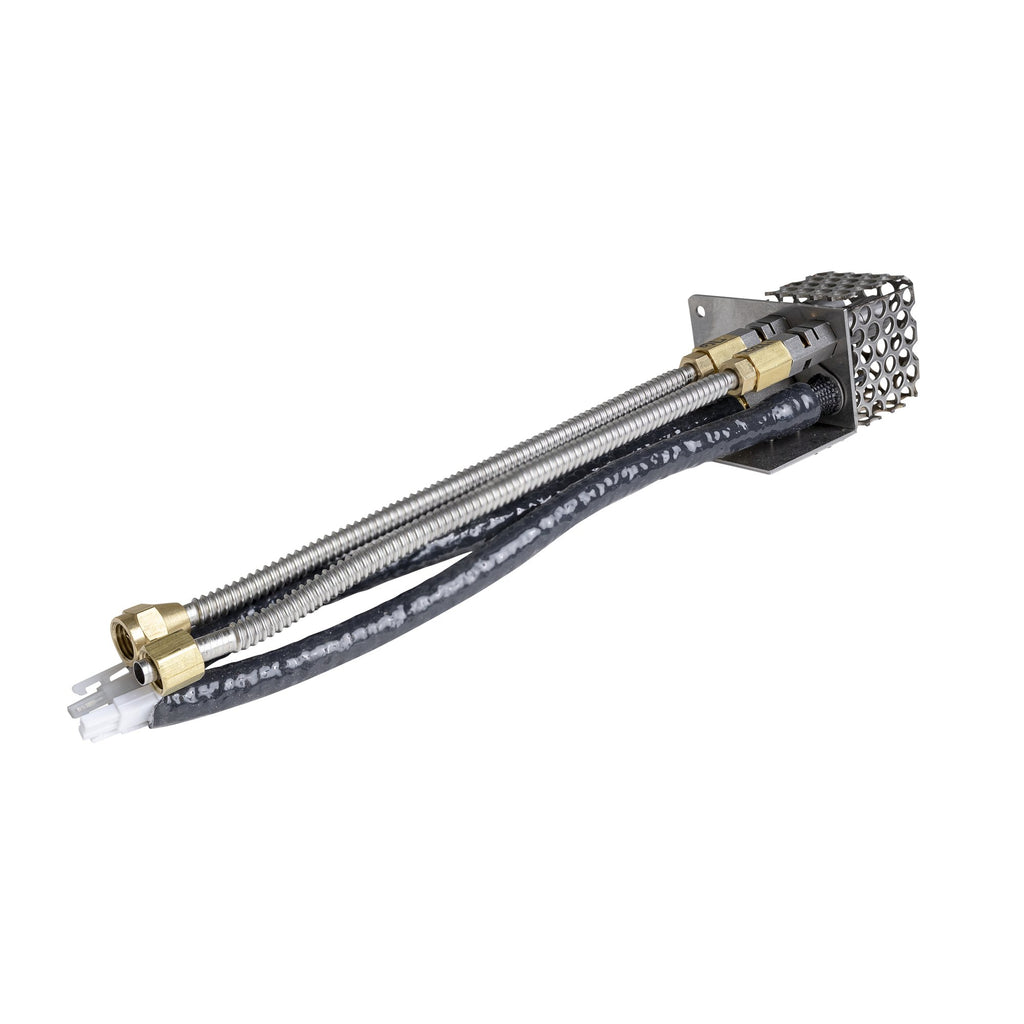

  • 18" long commercial grade pilot burner
  • Hot Surface Ignition (Glow Plug) with Intermittent Pilot ignition sequence
  • Thermopile flame and heat sensing for consistent operation
  • Operates on 24 volts AC via included transformer
  • Inlet gas pressure limit of 2.0 psi
  • Inlet size 3/8" FIP, outlet size 1/2" FIP
  • Valve enclosure measures 4 3/8" x 4 3/8" x 4 3/8" tall

Fire Pit Art quality

This AWEIS system is field serviceable, meaning its individual components — the pilot burner assembly, ignition control module, and transformer — can be accessed and serviced rather than requiring a full replacement. The hot surface ignition and thermopile sensing are built to commercial-grade specifications, giving the unit the kind of durability expected in higher-use fire pit installations.

Delivery and installation

The AWEIS kit ships via UPS Ground in a 7" x 10" x 5" box and weighs 15 lb, both as a packaged product and in shipping weight. When shipped separately from a fire pit, it may arrive via USPS depending on box availability. The kit includes the control box, pilot burner assembly, and transformer, along with the heat deflector shield and install instructions referenced in the manufacturer documentation. Assembly is required, and because this is an electrical and gas component, the manufacturer recommends always consulting a licensed electrician for installation.
