Fire Pit Art Standard AWEIS – S-AWEIS
Specifications
| Brand | Fire Pit Art |
|---|---|
| Model | S-AWEIS |
| Fire pit height | 4" |
| Overall height | 4" |
| Diameter / width | Dependant on box available - shipped via USPS when not shipped with fire pit |
| Shipping box (L x W x H) | 7" x 10" x 5" - UPS Ground |
| Product weight | 15 lb |
| Shipping weight | 15 lb |
| UPC | 614405516220 |
Frequently asked questions
What size fire pit does this fit?
What's included in the box?
Is installation required, and can I do it myself?
How does this ship?
What fuel type does this work with?
Is this system field serviceable?
Delivery
Fire Pit Art
Fire Pit Art Standard AWEIS – S-AWEIS
The Fire Pit Art Standard AWEIS is a 125K BTU propane electronic ignition system with an 18-inch commercial grade pilot burner, built for fire pit owners who need a field-serviceable ignition upgrade. It operates on 24-volt AC power, stands 4 inches tall, and ships at 15 lb in a 7" x 10" x 5" box via UPS Ground.
- 125K BTU commercial grade output
- 18-inch commercial grade pilot burner
- 24-volt AC operation, 2.0 psi inlet limit
- Includes transformer, pilot burner, ignition module
- Field serviceable propane ignition system
- Ships UPS Ground at 15 lb
- Made to order — ships in 2–5 business days
- Authorized Fire Pit Art dealer — new, genuine product
- Delivery in 3–4 business days after dispatch
- Free shipping on orders $2,500+ · flat $100 shipping under $2,500 (US)
Description
The Fire Pit Art Standard AWEIS is an All Weather Electronic Ignition System built for propane fire pits that need a dependable, field-serviceable ignition upgrade or replacement. It suits homeowners and installers replacing an existing ignition system or outfitting a new propane fire pit with a commercial-grade pilot and electronic control. At just 4 inches tall overall, the control components tuck neatly into the fire pit base without adding bulk, making it a practical fit for both residential patios and commercial outdoor spaces.
Features
- 125K BTU maximum output for strong, consistent flame performance

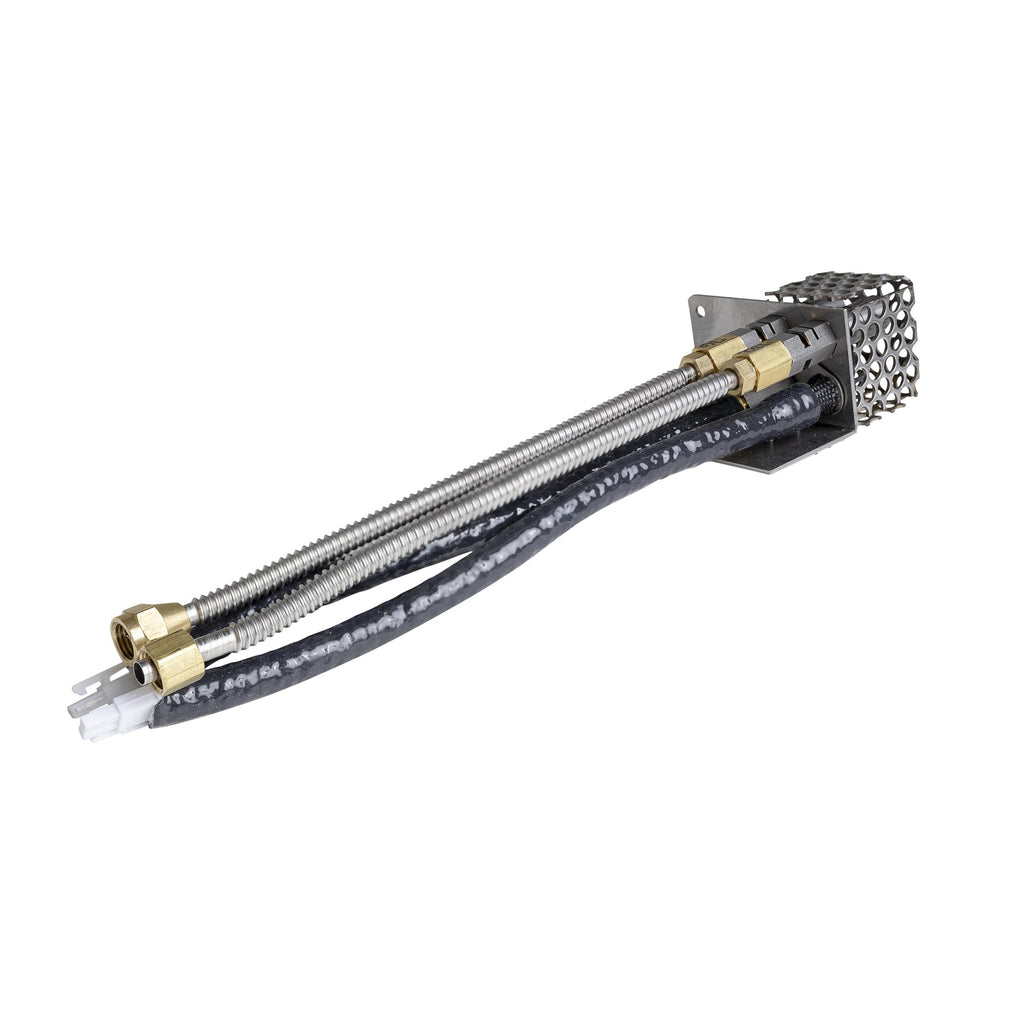

- 18-inch commercial grade pilot burner for reliable ignition
- Thermopile flame and heat sensing for safe operation
- Hot Surface Ignition (Glow Plug) with an intermittent pilot ignition sequence
- 24-volt AC operating voltage with included transformer
- Inlet gas pressure limit of 2.0 psi for propane (LP) fuel systems
- Inlet/outlet sizing of 1/2 inch FPT for straightforward gas line connection

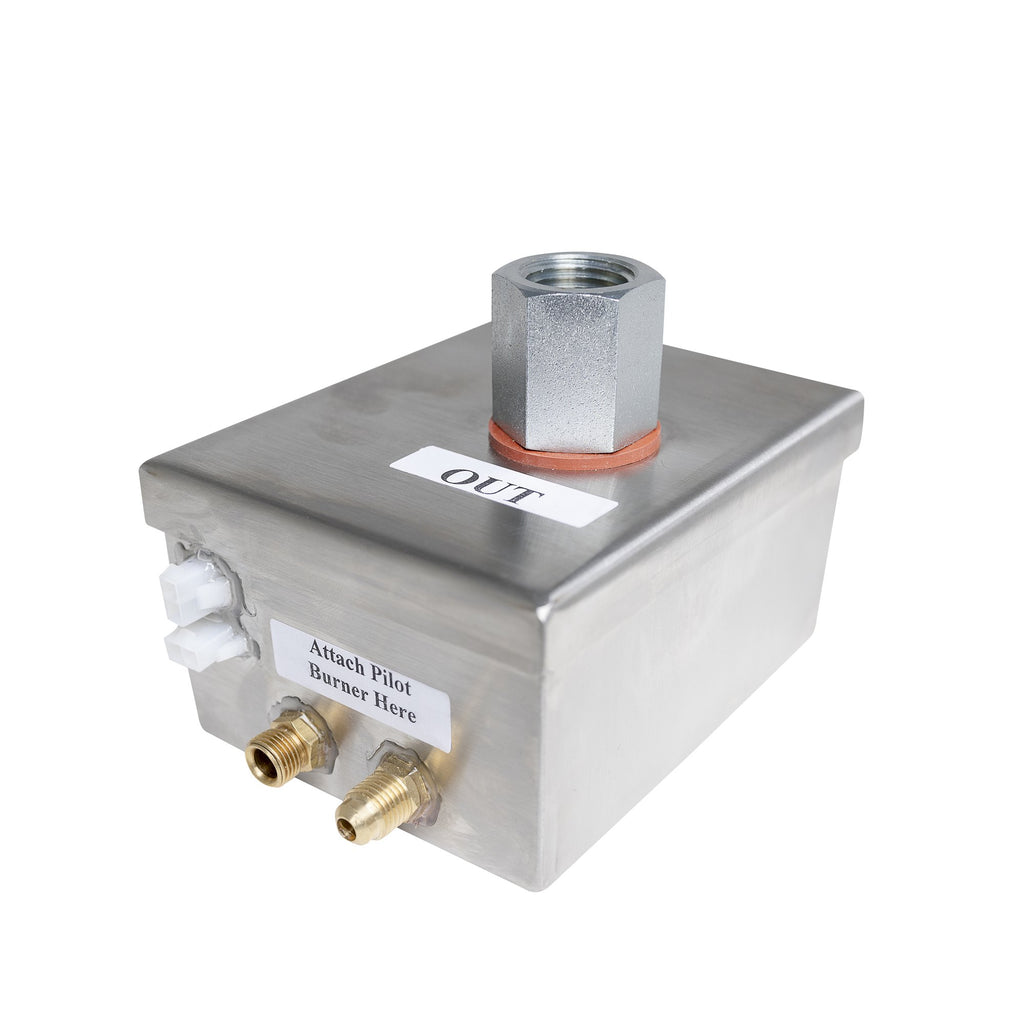

- Valve enclosure measuring 4 3/8" x 4 3/8" x 4 3/8" tall for compact installation
Fire Pit Art quality

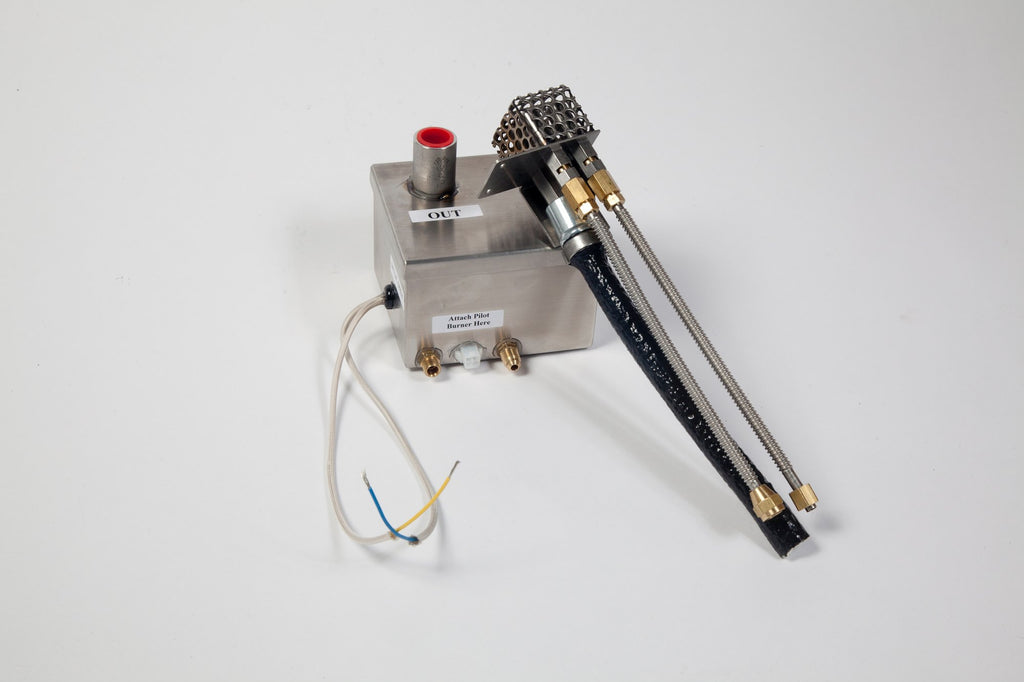

Fire Pit Art designs this AWEIS system to be field serviceable, meaning components like the pilot burner assembly, ignition control module, and heat deflector shield can be accessed and maintained without replacing the entire unit. The system ships with a 24-volt AC transformer, pilot burner assembly, ignition control module, heat deflector shield, and install instructions, giving installers everything needed to complete a propane electronic ignition setup from a single kit.
Delivery and installation
The Standard AWEIS ships in a compact 7" x 10" x 5" box via UPS Ground, weighing 15 lb. When not shipped alongside a fire pit, the unit is shipped via USPS; overall diameter and width depend on the box available for that shipment. Assembly is required, and because this is an electronic ignition system operating on 24 volts AC with a 2.0 psi propane inlet pressure limit, Fire Pit Art recommends always consulting a licensed electrician to complete installation.
