The Bio Flame 96" Firebox DS (84 Manual)
Specifications
| Brand | The Bio Flame |
|---|---|
| Model / SKU | FB-DS-96-84M-Black-Flush, FB-DS-96-84M-Black-Spacer, FB-DS-96-84M-Silver-Flush, FB-DS-96-84M-Silver-Spacer |
| Color options | Black, Stainless Steel |
| Material options | Flush Mount Glass, Spacer Mount Glass |
| Fuel | Bioethanol |
Frequently asked questions
What size opening does this fireplace need?
What is included with the fireplace?
How is it installed?
How much space can it heat?
What warranty does it come with?
What color and glass options are available?
Delivery
The Bio Flame
The Bio Flame 96" Firebox DS (84 Manual)
A 96" wide ethanol fireplace insert with an 84" burner, delivering 47,400 BTU (13.9Kw/h) and heating up to 1,819ft². Built from a 304 stainless steel, double walled, insulated firebox with 8mm tempered glass, UL/ULC approval, and a 5 year warranty. Suited to large living rooms or media walls needing real heat and a wide flame line.
- 47,400 BTU, heats up to 1,819ft²
- 96" wide firebox with 84" burner
- 304 stainless steel, double walled, insulated
- 8mm tempered glass window
- UL/ULC approved and certified
- 5 year warranty
- Made to order — ships in 2–5 business days
- Authorized The Bio Flame dealer — new, genuine product
- Delivery in 3–4 business days after dispatch
- Free shipping on orders $2,500+ · flat $100 shipping under $2,500 (US)
Description

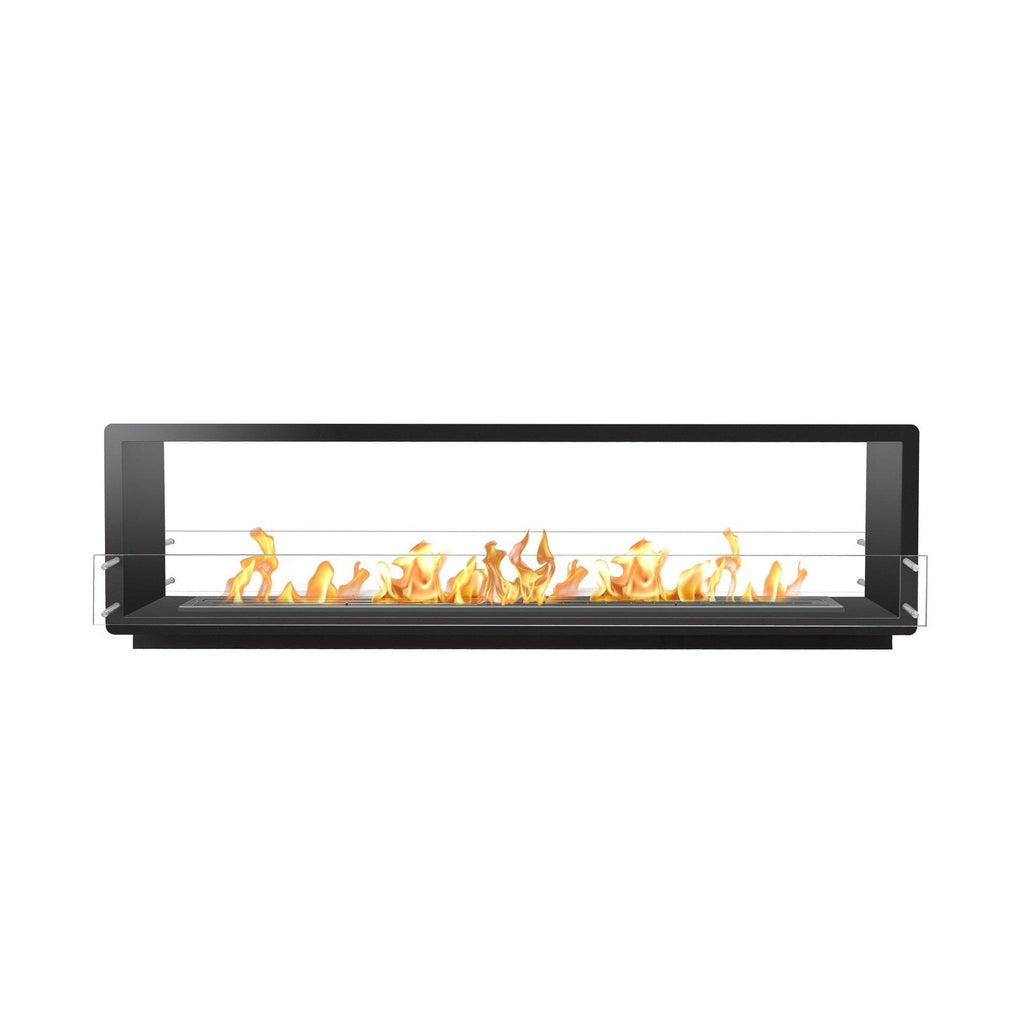

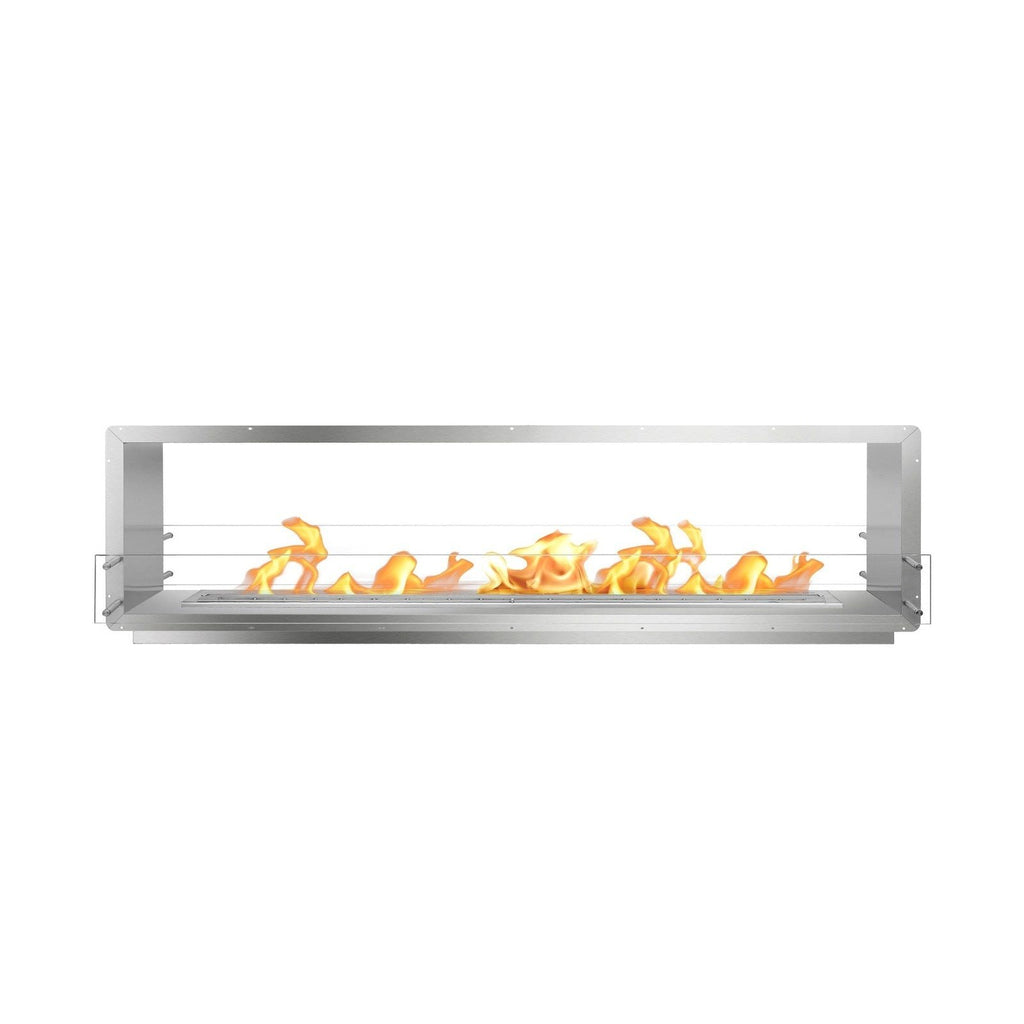

The Bio Flame 96" Firebox DS (84 Manual) is a large linear ethanol fireplace insert built for living rooms, great rooms, and media walls that need real heat output along with a wide, uninterrupted flame line. With a 96" overall width and an 84" burner, it suits long fireplace surrounds, built-in cabinetry, or a feature wall where a smaller insert would look out of scale. Rated at 47,400 BTU (13.9Kw/h) and able to heat up to 1,819ft², it works as a genuine heat source rather than a purely decorative flame, making it a fit for open-concept spaces or rooms with higher ceilings.
Features
- 47,400 BTU / 13.9Kw/h output, heating up to 1,819ft²
- 84" burner set inside a 96" wide firebox
- 304 stainless steel firebox with double walled, fully insulated construction
- Brushed stainless steel internal frame for structural support
- 8mm tempered glass viewing window
- UL/ULC approved and certified for safety compliance
- 5 year warranty on the unit

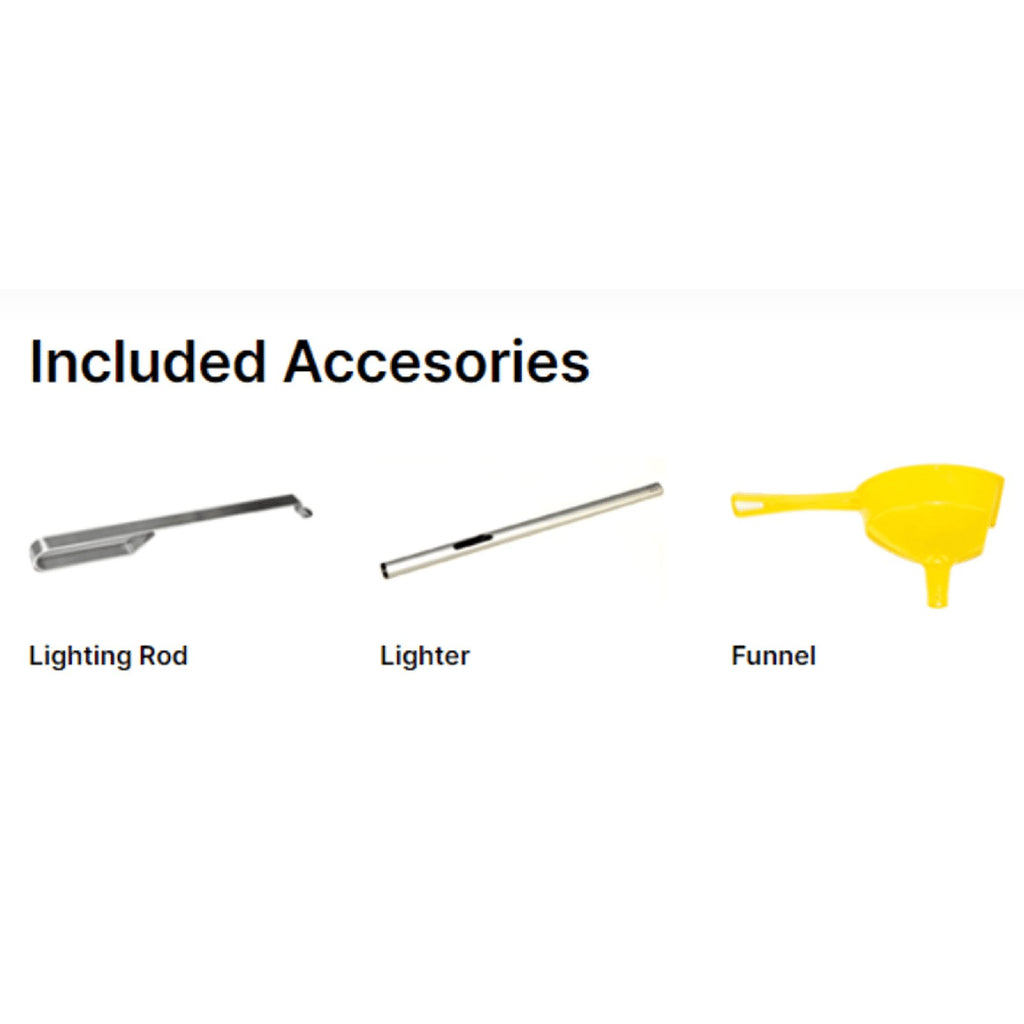

- Includes Lighting Rod, Lighter, and Funnel for setup and refueling
The Bio Flame quality
This insert is part of The Bio Flame's Firebox Collection and is built around a 304 stainless steel, double walled, fully insulated firebox designed to contain and manage heat from the 84" burner. The brushed stainless steel internal frame and 8mm tempered glass window are paired with UL/ULC approval and certification, and the unit is backed by a 5 year warranty. It is available in Black or Stainless Steel, with a choice of Flush Mount Glass or Spacer Mount Glass, so it can be matched to the surrounding finish and installation style.
Delivery and installation
The 96" Firebox DS (84 Manual) measures H 27.0" x W 96.0" x D 15.0" and weighs 353lbs, so plan for the appropriate opening size and support structure before installation. It arrives with the Lighting Rod, Lighter, and Funnel included, along with Installation Manual and User Manual & Safety Instructions documentation to guide setup. As a manual-ignition unit, it is intended for installation into a fireplace surround, built-in, or media wall opening sized to its dimensions.
